System Diagram
SW100SP Operator

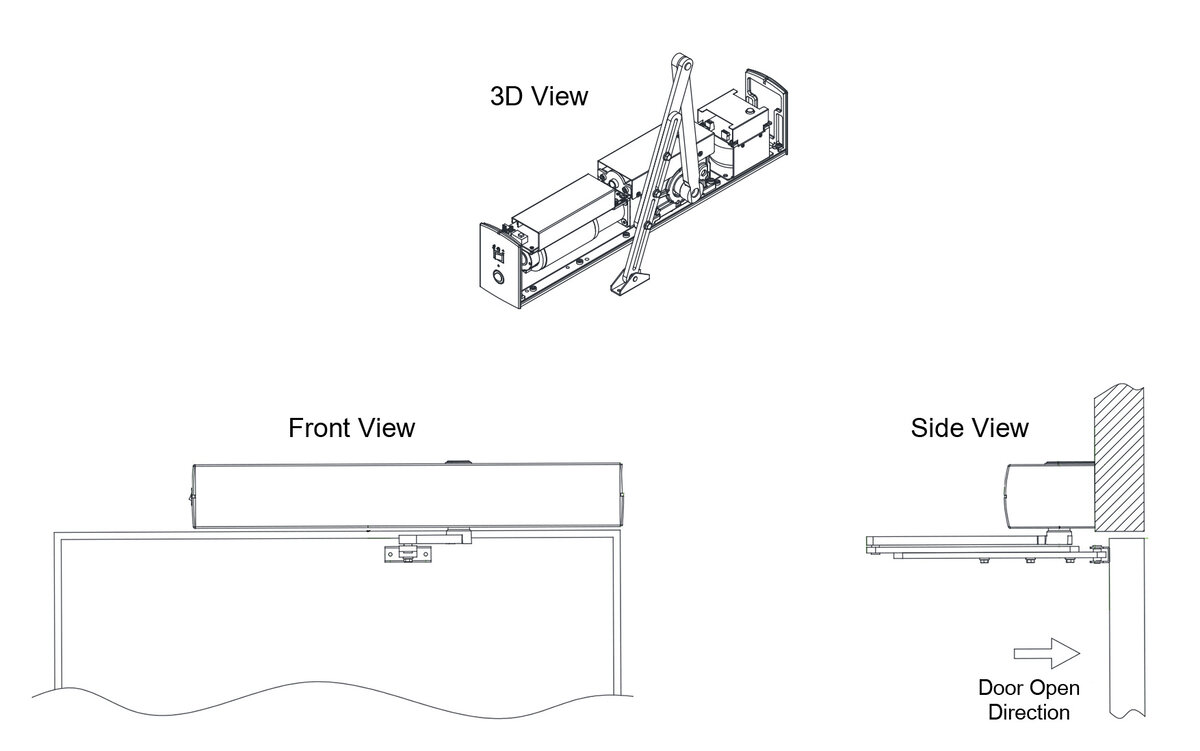

3D isometric view, front elevation and side profile of the SW100SP automatic swing door operator — showing motor housing, arm linkage and mounting positions on a standard door leaf.
Automatic swing door operators for accessible entrances — low-energy push/pull operators through to full-power automatic systems, configured for ADA and fire-egress compliance.
Swing operators are the standard choice for accessible entrances — clinics, offices and public buildings — where a powered, low-force opening is required for wheelchair and trolley access.
We install both low-energy operators (activated by a push plate, opening with controlled force) and full-power systems (activated by motion sensors or remote access for hands-free entry).
All systems include swing-radius safety sensors to detect obstructions, and can be configured for single or double-leaf doors, including fire-rated assemblies.
Swing operators are the preferred solution where a sliding track is impractical — narrow corridors, existing manual door frames, fire-rated openings, and heritage buildings where the original door leaf must be preserved. We recommend swing automation for:
Healthcare & Clinics — Hands-free entry for wheelchair and trolley access, with adjustable opening force for patient safety. Fire-rated assemblies available for smoke compartment doors.
Offices & Commercial — Low-energy operators activated by push plate for accessible entrances meeting BCA accessibility code. Retain existing door leaves where aesthetics matter.
Cleanroom & Laboratory — Full-power swing with hermetic perimeter seals for pressure-controlled environments. Interlock logic for gowning rooms and material airlocks.
Kitchens & Service Corridors — Hands-free operation for staff carrying trays and trolleys, with adjustable hold-open timing and safety sensors for high-traffic service areas.
3D isometric view, front elevation and side profile of the SW100SP automatic swing door operator — showing motor housing, arm linkage and mounting positions on a standard door leaf.
A selection of automatic swing door projects completed across Singapore — from museums and universities to hotels, factories and cleanroom facilities.
